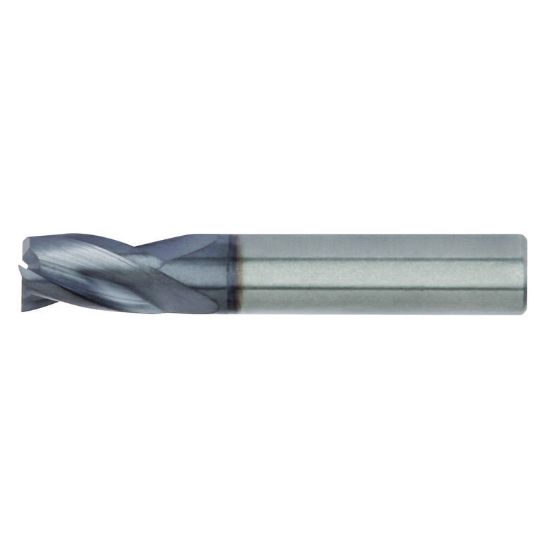

HANITA/WIDIA D0130300T007S DIA 3MM SH 0.2362 LOC 0.2756 OAL 2.2441 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAND0130300T007S
Delivery date: 3-5 days
$17.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Performance Rating General Performance
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Length Of Cut 0.2756 7.00MM
Dimension Description 0.118 x 0.236 x 0.276 x 2.244
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Carbide Finisher
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Cutter Dia 0.1181 3.00MM
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 30°
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
