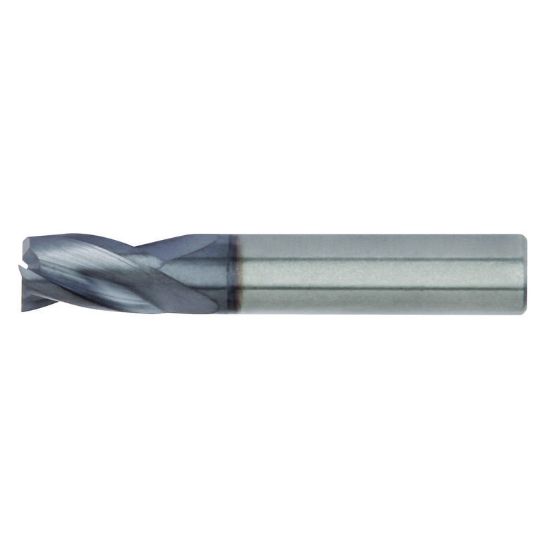

HANITA/WIDIA D0130250W007S DIA 2.50MM SH 0.2362 LOC 0.2756 OAL 2.244 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAND0130250W007S
Delivery date: 3-5 days
$16.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Helix Angle 30°
Flutes/Inserts 3
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Cutter Dia 0.0984 2.50MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Length Of Cut 0.2756 7.00MM
Tool Material Carbide
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.2362 6.00MM
Dimension Description 0.098 x 0.236 x 0.276 x 2.244
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
