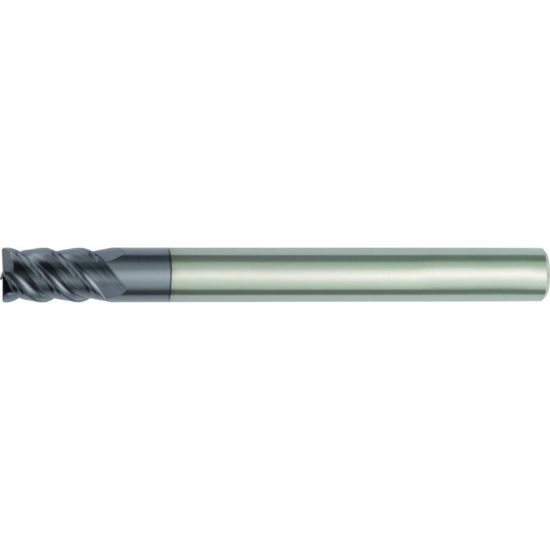

HANITA/WIDIA 758516016LT DIA 16MM SH 0.6299 LOC 0.9449 OAL 4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0591 1.50MM Vision Plus

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN758516016LT
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Slot Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Neck Length 0.9449 24.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
End Of Tool Shape Corner Radius
Overall Len 4.9213 125.00MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.630 x 0.630 x 0.945 x 4.921
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 4
Cutter Dia 0.6299 16.00MM
Corner Radius 0.0591 1.50MM
Length Type Standard / With Neck
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.9449 24.00MM
Helix Angle 50°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Mold Yes
Job Shop Yes
