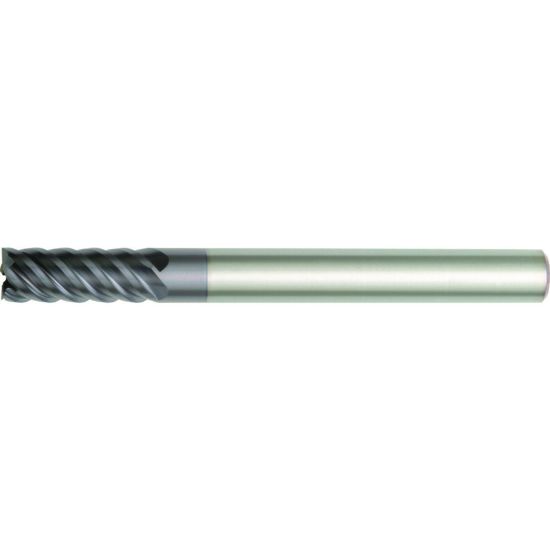

HANITA/WIDIA 754512005LT DIA 12MM SH 0.4724 LOC 0.7087 OAL 2.9921 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Vision Plus

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN754512005LT
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Helix Angle 50°
Machine Side Connection Size 0.4724 12.00MM
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.472 x 0.472 x 0.709 x 2.992
Cutter Dia 0.4724 12.00MM
Length Of Cut 0.7087 18.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Flutes/Inserts 4
Length Type Standard
Overall Len 2.9921 76.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Mold Yes
