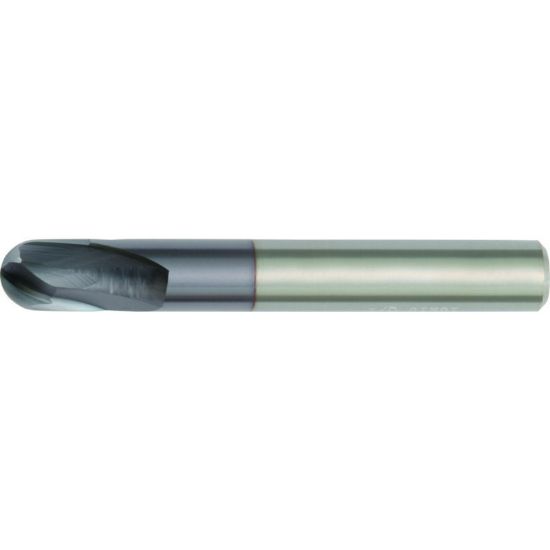

HANITA/WIDIA 715102000RT DIA 2MM SH 0.1181 LOC 0.1181 OAL 1.4961 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Vision Plus

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN715102000RT
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Profile Milling, Copy Milling, Ball Slot Milling, Side Milling
Performance Rating High Performance
Shipping State Ohio
Made In USA Yes
Package Size 1
Dimensional Specifications
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Helix Angle 15°
Cutter Dia 0.0787 2.00MM
Machine Side Connection Size 0.1181 3.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Dimension Description 0.079 x 0.118 x 0.118 x 1.496
Length Of Cut 0.1181 3.00MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Neck Length 0.1181 3.00MM
Overall Len 1.4961 38.00MM
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
