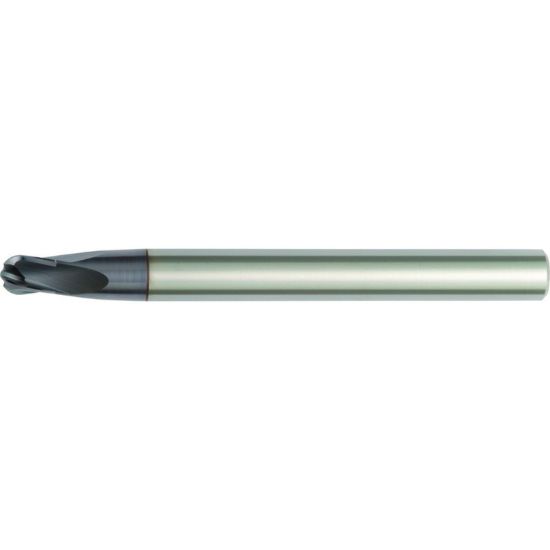

HANITA/WIDIA 705006004RT DIA 6MM SH 0.3937 LOC 0.2362 OAL 3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Vision Plus

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN705006004RT
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Cutter Dia 0.2362 6.00MM
Neck Length 0.2362 6.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.3937 10.00MM
Overall Len 3.9370 100.00MM
Helix Angle 15°
Dimension Description 0.236 x 0.394 x 0.236 x 3.937
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Length Type Standard / With Neck
Length Of Cut 0.2362 6.00MM
End Of Tool Shape Ball Nose
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
