  • HANITA/WIDIA 661W32009WW DIA 32MM SH 2.00 LOC 3.9370 OAL 6.6929 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

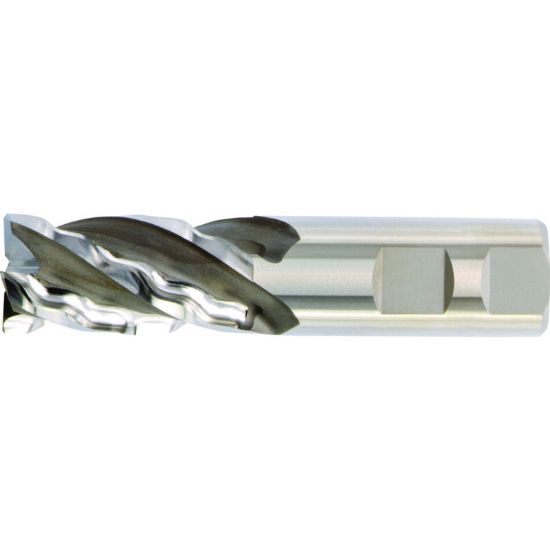

Picture of HANITA/WIDIA 661W32009WW DIA 32MM SH 2.00 LOC 3.9370 OAL 6.6929 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

HANITA/WIDIA 661W32009WW DIA 32MM SH 2.00 LOC 3.9370 OAL 6.6929 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN661W32009WW
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Tool Material Cobalt
Single/Double End Single End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Cutter Style Carbide Rougher
Dimension Description 1.260 x 2.000 x 3.937 x 6.693
Length Of Cut 3.9370 100.00MM
Length Type Standard
Machine Side Connection Type Weldon
Flutes/Inserts 6
Overall Len 6.6929 170.00MM
Neck Length 4.3307 110.00MM
Shank/Pilot Dia 2.0000 50.80MM - 2
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Helix Angle 35°
Cutter Dia 1.2598 32.00MM
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
