  • HANITA/WIDIA 621W32089 DIA 1-1/4 SH 2.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

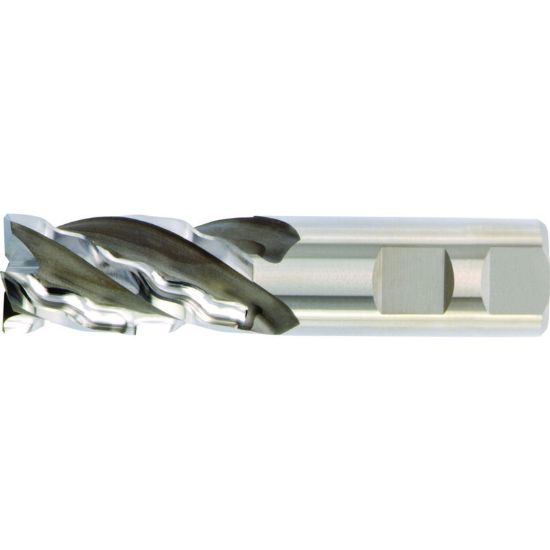

Picture of HANITA/WIDIA 621W32089 DIA 1-1/4 SH 2.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

HANITA/WIDIA 621W32089 DIA 1-1/4 SH 2.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN621W32089
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Shipping State Ohio
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Dimension Description 1.250 x 1.250 x 4.000 x 6.500
End Of Tool Shape Corner Chamfer
Cutter Style Cobalt Wave Cut Rougher
Neck Length 4.0000 101.60MM
Length Type Standard
Machine Side Connection Size 2.0000 50.80MM
Length Of Cut 4.0000 101.60MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutter Dia 1.2500 31.75MM - 1-1/4
Inch/Metric Inch
Tool Material Cobalt
Helix Angle 35°
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
