  • HANITA/WIDIA 621W25078 DIA 1 SH 2.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

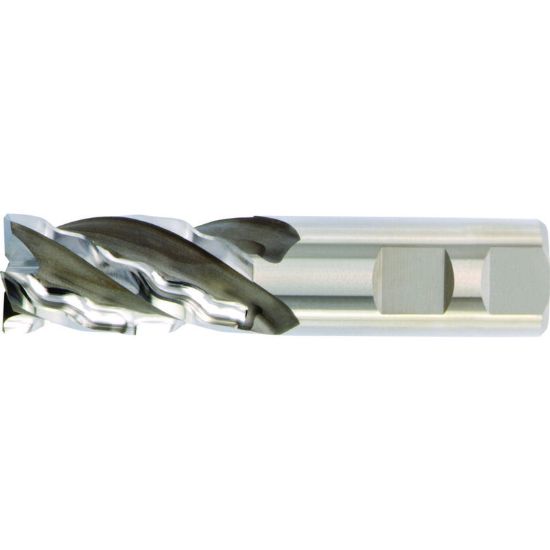

Picture of HANITA/WIDIA 621W25078 DIA 1 SH 2.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

HANITA/WIDIA 621W25078 DIA 1 SH 2.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN621W25078
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Dimension Description 1.000 x 1.000 x 4.000 x 6.500
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 2.0000 50.80MM
Overall Len 6.5000 165.10MM
Tool Material Cobalt
End Of Tool Shape Corner Chamfer
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Length Of Cut 4.0000 101.60MM
Neck Length 4.0000 101.60MM
Flutes/Inserts 4
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
