  • HANITA/WIDIA 620W19077 DIA 3/4 SH 2.00 LOC 1.6250 OAL 3.8750 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

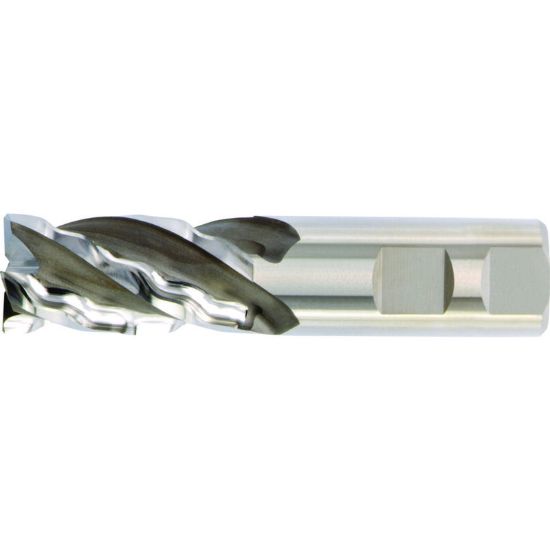

Picture of HANITA/WIDIA 620W19077 DIA 3/4 SH 2.00 LOC 1.6250 OAL 3.8750 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

HANITA/WIDIA 620W19077 DIA 3/4 SH 2.00 LOC 1.6250 OAL 3.8750 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN620W19077
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 4
Length Type Standard
Tool Material Cobalt
Shank/Pilot Dia 2.0000 50.80MM - 2
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Corner Chamfer
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 2.0000 50.80MM
Dimension Description 0.750 x 2.000 x 1.625 x 3.875
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Neck Length 1.6250 41.28MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Overall Len 3.8750 98.43MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
