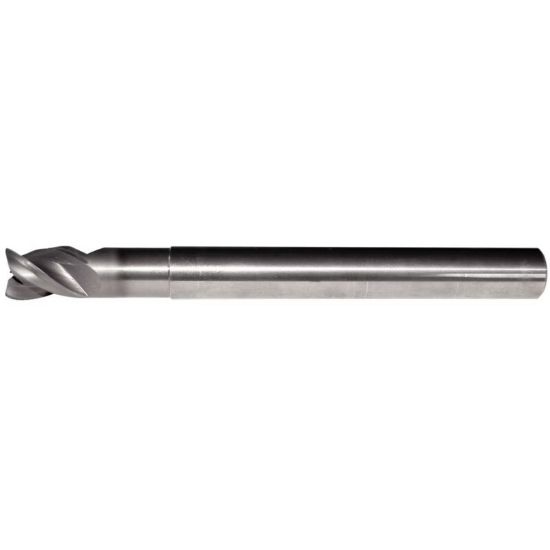

HANITA/WIDIA 5AN325028 DIA 1 SH 1.00 LOC 1.1250 OAL 7.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp AluSurf

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN5AN325028
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Helix Angle 38°
Dimension Description 1.000 x 1.000 x 1.125 x 7.000
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 7.0000 177.80MM
Length Of Cut 1.1250 28.58MM
Length Type Standard
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
End Of Tool Shape Square
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
