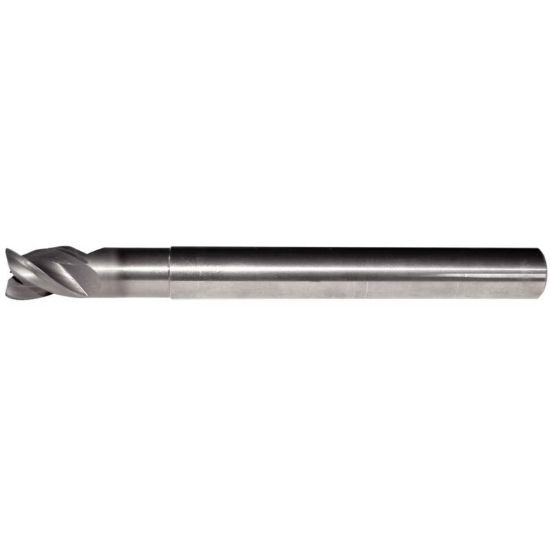

HANITA/WIDIA 5AN313045C DIA 1/2 SH 0.50 LOC 0.5625 OAL 5.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM AluSurf

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN5AN313045C
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Side Milling, Copy Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Helix Angle 38°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
Length Of Cut 0.5625 14.29MM
Corner Radius 0.0600 1.52MM
Cutter Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.500 x 0.500 x 0.563 x 5.000
Neck Length 1.5000 38.10MM
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
