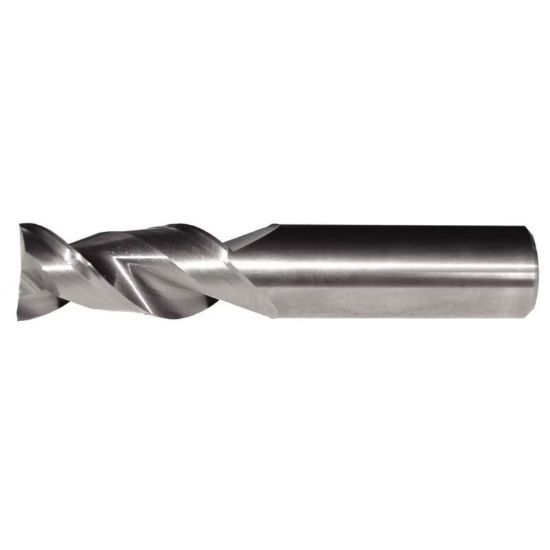

HANITA/WIDIA 5A0208003 DIA 5/16 SH 0.3125 LOC 0.6250 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp AluSurf

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN5A0208003
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Shipping State Ohio
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.313 x 0.313 x 0.625 x 2.500
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Helix Angle 45°
Cutter Dia 0.3125 7.94MM - 5/16
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
