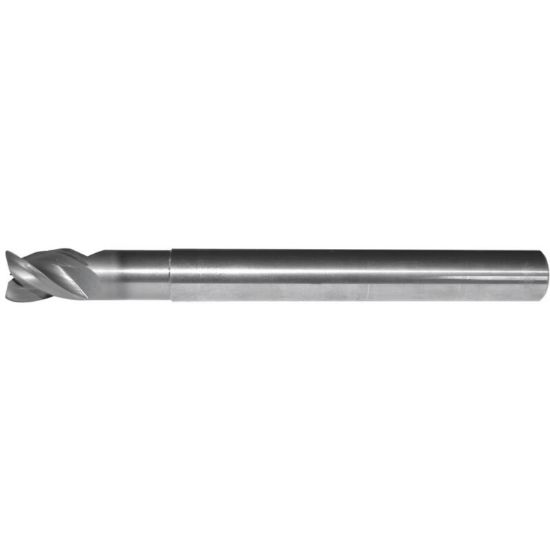

HANITA/WIDIA 51N320037.. DIA 20MM SH 0.7874 LOC 1.1811 OAL 4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM AluSurf

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN51N320037..
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Profile Milling, Copy Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Dimension Description 0.787 x 0.787 x 1.181 x 4.921
Corner Radius 0.0079 0.20MM
Length Type Standard / With Neck
Helix Angle 38°
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Overall Len 4.9213 125.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Neck Length 2.3622 60.00MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7874 20.00MM
Cutter Dia 0.7874 20.00MM
Length Of Cut 1.1811 30.00MM
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
