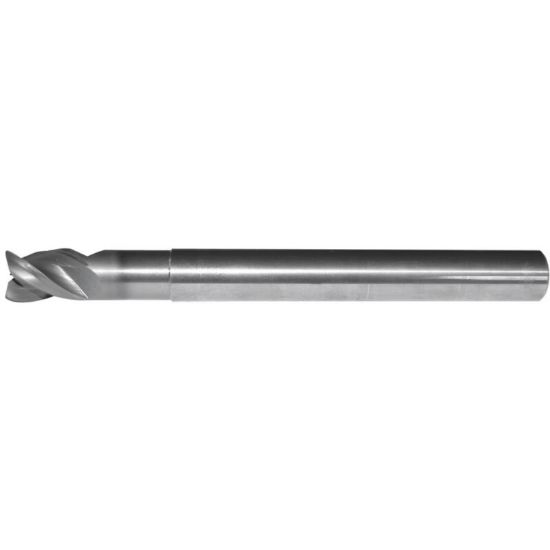

HANITA/WIDIA 51N312015.. DIA 12MM SH 0.4724 LOC 0.7087 OAL 3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0591 1.50MM AluSurf

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN51N312015..
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Neck Length 1.4173 36.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Length Of Cut 0.7087 18.00MM
Dimension Description 0.472 x 0.472 x 0.709 x 3.937
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.4724 12.00MM
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.4724 12.00MM
Helix Angle 38°
Flutes/Inserts 3
Corner Radius 0.0591 1.50MM
Overall Len 3.9370 100.00MM
Length Type Standard / With Neck
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
