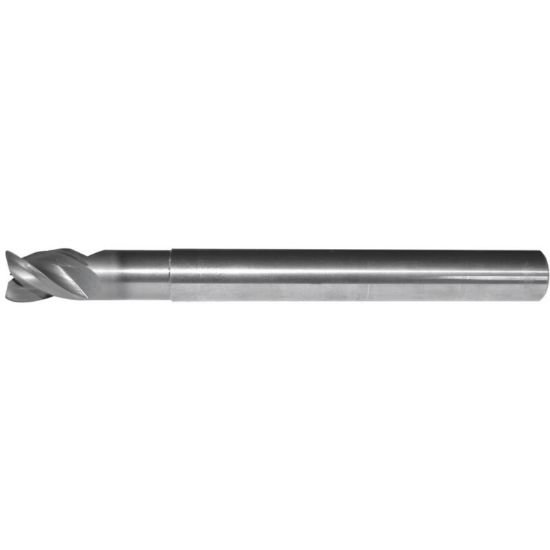

HANITA/WIDIA 51N310004.. DIA 10MM SH 0.3937 LOC 0.5906 OAL 3.5039 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM AluSurf

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN51N310004..
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Side Milling, Copy Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.3937 10.00MM
Dimension Description 0.394 x 0.394 x 0.591 x 3.504
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5039 89.00MM
Machine Side Connection Size 0.3937 10.00MM
Length Type Standard / With Neck
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Helix Angle 38°
Corner Radius 0.0197 0.50MM
Length Of Cut 0.5906 15.00MM
Neck Length 1.1811 30.00MM
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
