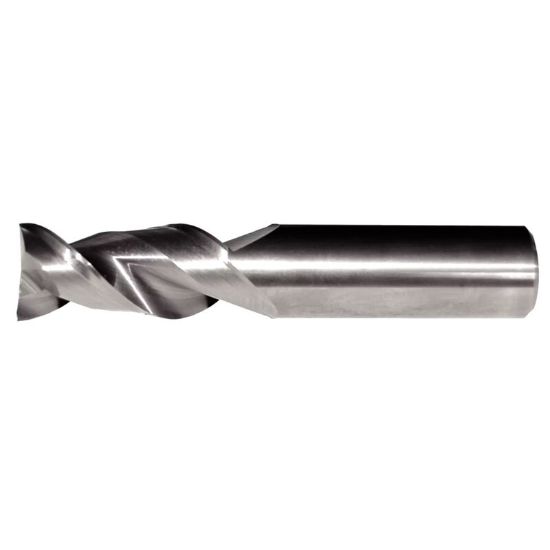

HANITA/WIDIA 510201500.. DIA 1.50MM SH 0.0591 LOC 0.2362 OAL 1.496 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp AluSurf

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN510201500..
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Shipping State Ohio
Made In USA Yes
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Overall Len 1.4961 38.00MM
Cutter Dia 0.0590 1.50MM
Flutes/Inserts 2
Inch/Metric Metric
Dimension Description 0.059 x 0.118 x 0.236 x 1.496
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.2362 6.00MM
Cutter Style Carbide Finisher
Shank/Pilot Dia 0.0591 1.50MM
Length Type Standard
Machine Side Connection Size 0.0591 1.50MM
End Of Tool Shape Square
Helix Angle 45°
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
