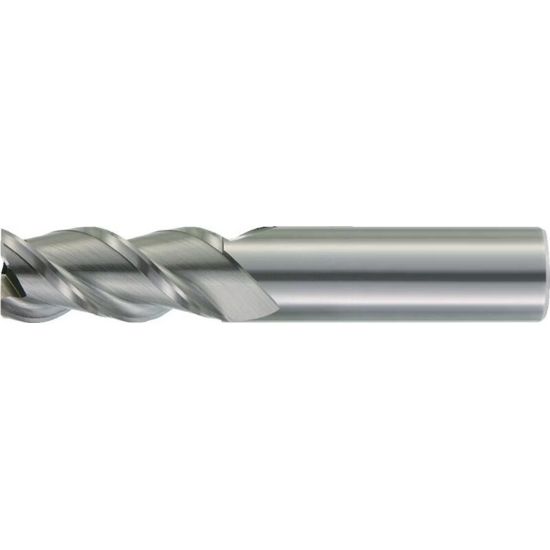

HANITA/WIDIA 4K6319077C DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM ArCut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4K6319077C
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Helix Angle 37°
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Neck Length 3.0000 76.20MM
Corner Radius 0.0600 1.52MM
Length Type Standard / With Neck
Dimension Description 0.750 x 0.750 x 3.000 x 5.250
Overall Len 5.2500 133.35MM
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 3.0000 76.20MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
