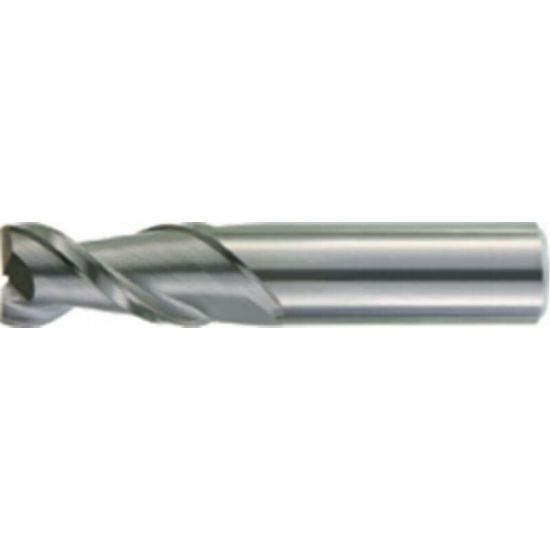

HANITA/WIDIA 4K6219077B DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM ArCut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4K6219077B
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Slot Milling, Face Milling, Profile Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Type Standard / With Neck
Cutter Dia 0.7500 19.05MM - 3/4
Neck Length 3.0000 76.20MM
Overall Len 5.2500 133.35MM
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.7500 19.05MM
Helix Angle 45°
Dimension Description 0.750 x 0.750 x 3.000 x 5.250
Corner Radius 0.0300 0.76MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Flutes/Inserts 2
Length Of Cut 3.0000 76.20MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
