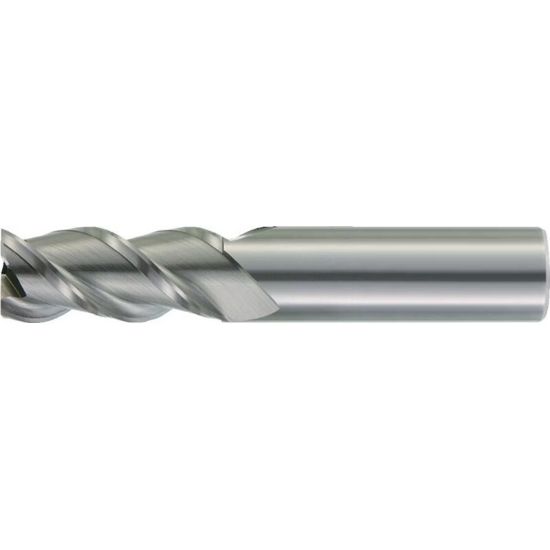

HANITA/WIDIA 4K4319077C DIA 3/4 SH 0.7500 LOC 0.8750 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM ArCut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4K4319077C
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Cutter Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Dimension Description 0.750 x 0.750 x 0.875 x 3.000
Overall Len 3.0000 76.20MM
Cutter Style Carbide Bull Nose Finisher
Helix Angle 37°
Cut Rating Aluminum, Graphite, Plastic
Neck Length 0.8750 22.23MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0600 1.52MM
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
