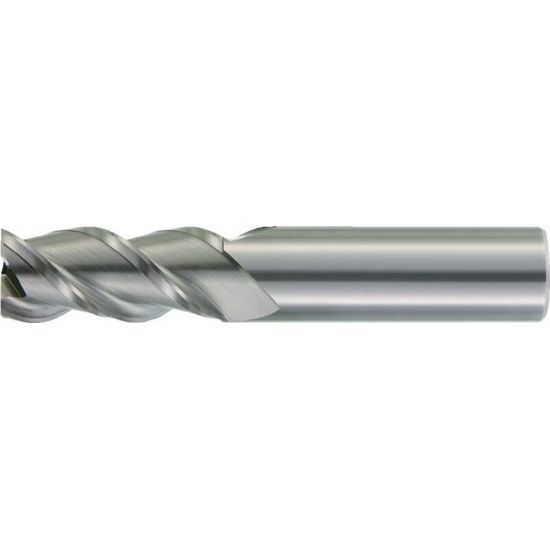

HANITA/WIDIA 4K4310074B DIA 3/8 SH 0.3750 LOC 0.50 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM ArCut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4K4310074B
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Profile Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Neck Length 0.5000 12.70MM
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Corner Radius
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.375 x 0.375 x 0.500 x 2.000
Corner Radius 0.0300 0.76MM
Overall Len 2.0000 50.80MM
Single/Double End Single End
Length Type Standard / With Neck
Machine Side Connection Size 0.3750 9.53MM
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Helix Angle 37°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
