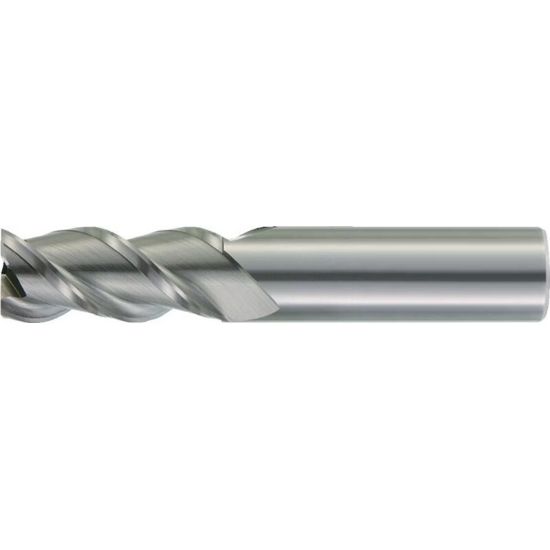

HANITA/WIDIA 4K1307072B DIA 1/4 SH 0.2500 LOC 1.2500 OAL 3.2500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM ArCut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4K1307072B
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Side Milling, Copy Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0300 0.76MM
Overall Len 3.2500 82.55MM
Single/Double End Single End
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Helix Angle 37°
Cutter Dia 0.2500 6.35MM - 1/4 - E
Neck Length 1.2500 31.75MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.250 x 0.250 x 1.250 x 3.250
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
