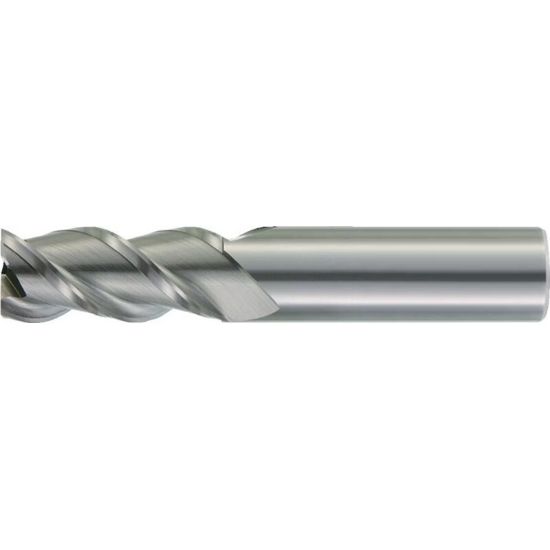

HANITA/WIDIA 4K0310074C DIA 3/8 SH 0.3750 LOC 0.8750 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM ArCut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4K0310074C
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Face Milling, Copy Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Corner Radius 0.0600 1.52MM
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Helix Angle 37°
Overall Len 2.5000 63.50MM
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Cut Rating Aluminum, Graphite, Plastic
Neck Length 0.8750 22.23MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.375 x 0.375 x 0.875 x 2.500
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
