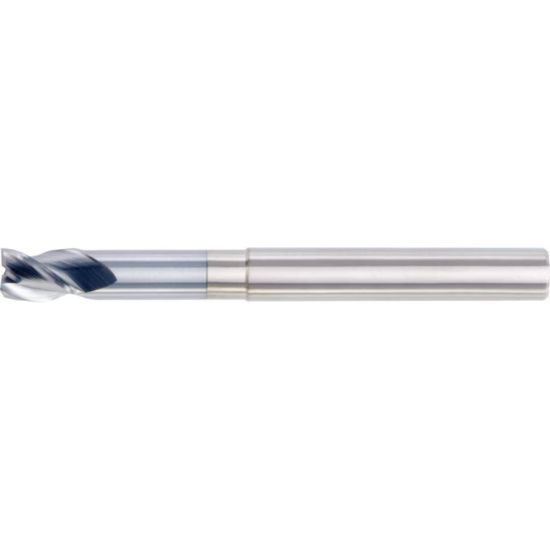

HANITA/WIDIA 4AN313025 DIA 1/2 SH 0.50 LOC 0.6250 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4AN313025
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Slot Milling, Side Milling
Shipping State Ohio
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Length Of Cut 0.6250 15.88MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Dimension Description 0.500 x 0.500 x 0.625 x 3.000
Flutes/Inserts 3
End Of Tool Shape Square
Overall Len 3.0000 76.20MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 37°
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
