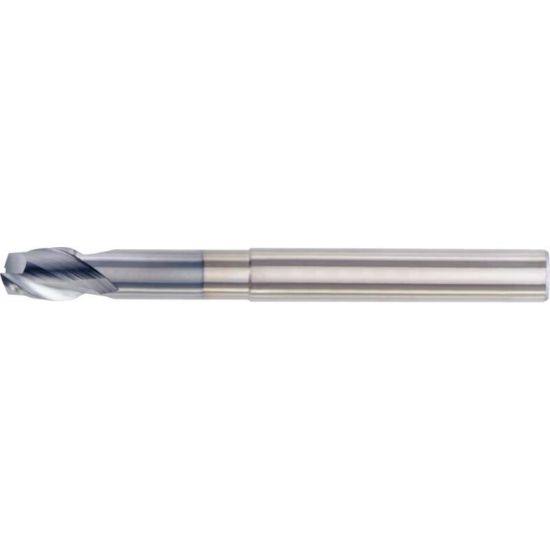

HANITA/WIDIA 4AN203011 DIA 1/8 SH 0.1250 LOC 0.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4AN203011
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Single/Double End Single End
Flutes/Inserts 2
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Dimension Description 0.125 x 0.125 x 0.250 x 3.000
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 37°
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Square
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
