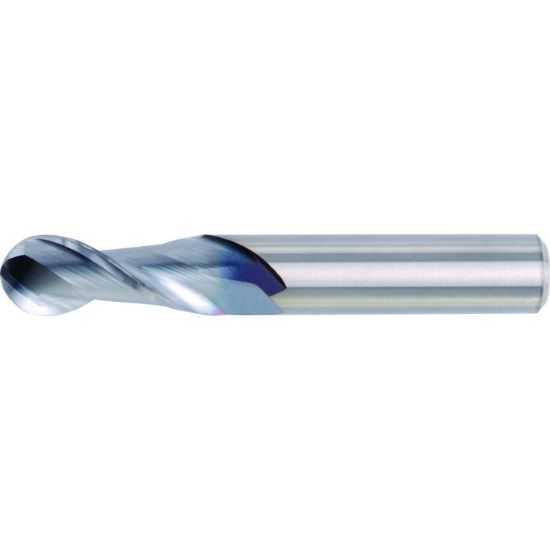

HANITA/WIDIA 4A4107002 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN4A4107002
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Ball Milling, Ball Slot Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Helix Angle 37°
Overall Len 2.0000 50.80MM
Length Type Standard / With Neck
Dimension Description 0.250 x 0.250 x 0.375 x 2.000
Flutes/Inserts 2
Neck Length 0.3750 9.53MM
Length Of Cut 0.3750 9.53MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
