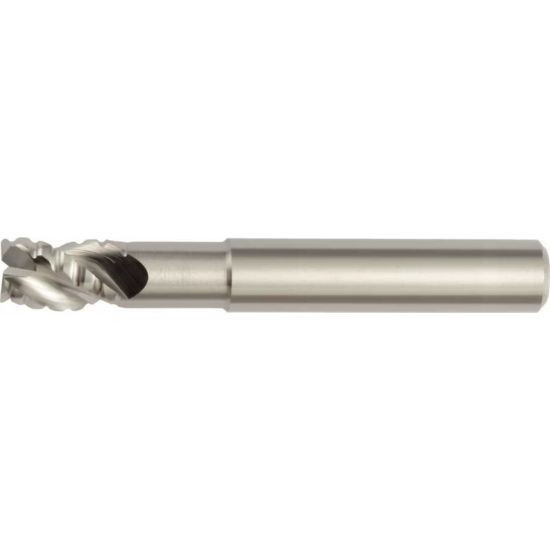

HANITA/WIDIA 49N920007.. DIA 20MM SH 0.7874 LOC 0.9449 OAL 4.0945 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0394 1.00MM WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN49N920007..
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Corner Radius 0.0394 1.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.9449 24.00MM
Neck Length 2.3622 60.00MM
Overall Len 4.0945 104.00MM
Helix Angle 40°
Inch/Metric Metric
Single/Double End Single End
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.7874 20.00MM
Dimension Description 0.787 x 0.787 x 0.945 x 4.095
Flutes/Inserts 3
Length Type Standard / With Neck
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
