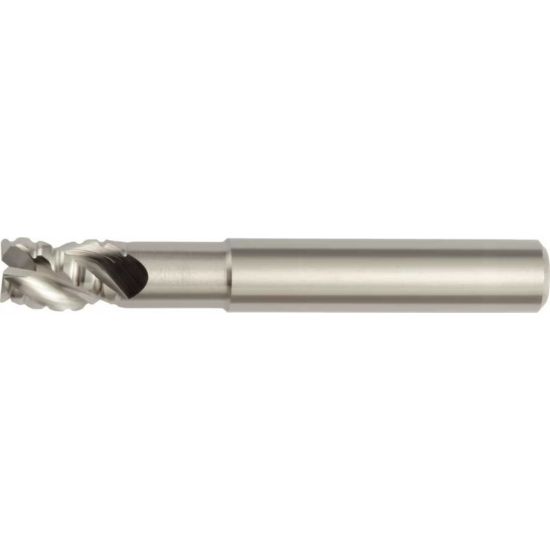

HANITA/WIDIA 49N91601R6JT DIA 16MM SH 0.6299 LOC 1.2598 OAL 3.6220 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0394 1.00MM WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN49N91601R6JT
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Length Of Cut 1.2600 32.00MM
Helix Angle 40°
Inch/Metric Metric
Length Type Standard / With Neck
Neck Length 1.8898 48.00MM
Overall Len 3.6220 92.00MM
Corner Radius 0.0394 1.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dimension Description 0.630 x 0.630 x 1.260 x 3.622
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
