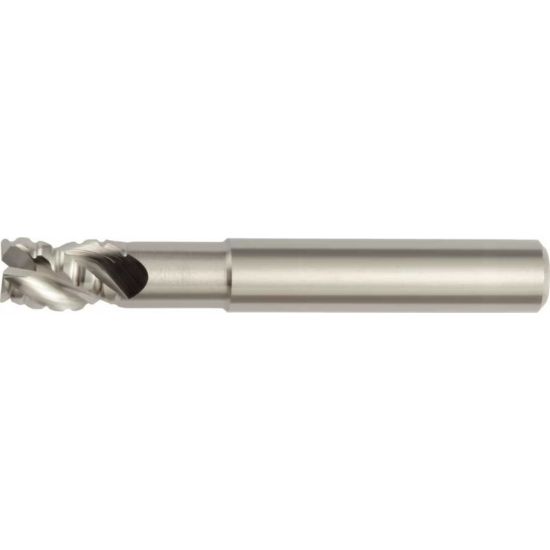

HANITA/WIDIA 49N90601R2BT DIA 6MM SH 0.2362 LOC 0.5118 OAL 2.2441 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0098 0.25MM WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN49N90601R2BT
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Length Type Standard / With Neck
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Helix Angle 40°
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.236 x 0.236 x 0.512 x 2.244
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Corner Radius 0.0098 0.25MM
Neck Length 0.7087 18.00MM
Length Of Cut 0.5118 13.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
