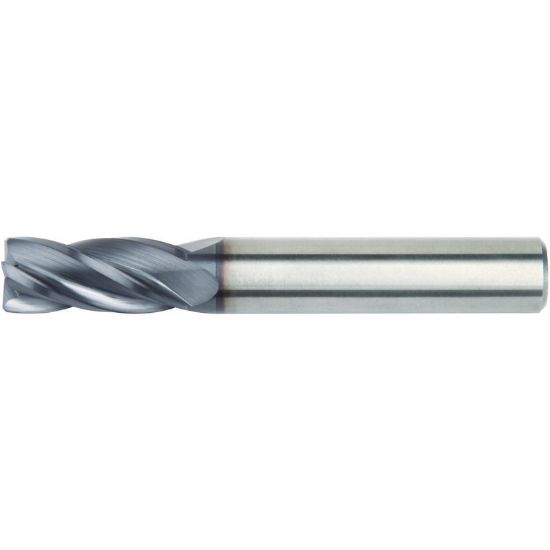

HANITA/WIDIA 40141600T056S DIA 16MM SH 0.6299 LOC 2.2047 OAL 4.3307 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN40141600T056S
Delivery date: 3-5 days
$105.79

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Made In USA Yes
Performance Rating General Performance
Package Size 1
Shipping State Ohio
Dimensional Specifications
Cutter Dia 0.6299 16.00MM
Length Of Cut 2.2047 56.00MM
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Overall Len 4.3307 110.00MM
Flutes/Inserts 4
Inch/Metric Metric
Length Type Standard
Dimension Description 0.630 x 0.630 x 2.205 x 4.331
Single/Double End Single End
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
