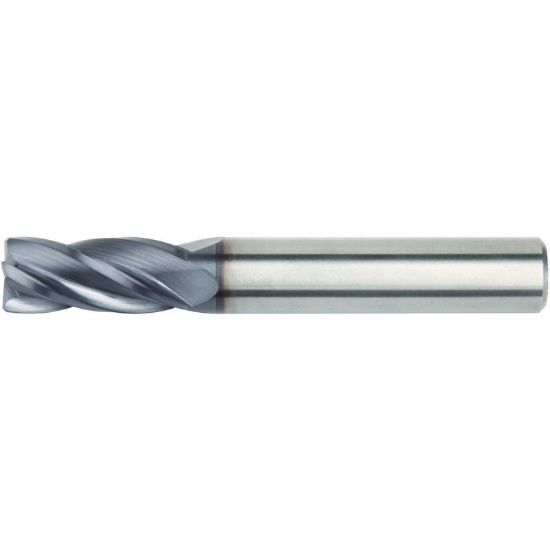

HANITA/WIDIA 40140800T028S DIA 8MM SH 0.3150 LOC 1.1024 OAL 2.9528 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAN40140800T028S
Delivery date: 3-5 days
$21.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 4
Inch/Metric Metric
Shank/Pilot Dia 0.3150 8.00MM
Helix Angle 30°
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Cutter Style Carbide Finisher
Dimension Description 0.315 x 0.315 x 1.102 x 2.953
Overall Len 2.9528 75.00MM
Length Of Cut 1.1024 28.00MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
