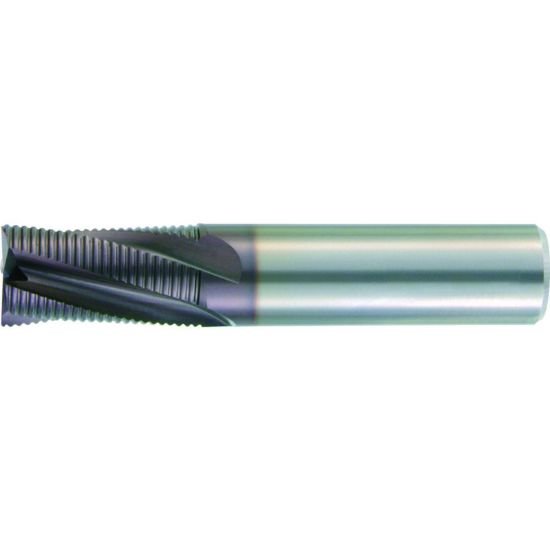

Picture of Hanita/Widia TR4S4R10004 Dia 3/8 SH 0.3750 LOC 0.50 OAL2.00 End Mill Carbide AlTiN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia TR4S4R10004 Dia 3/8 SH 0.3750 LOC 0.50 OAL2.00 End Mill Carbide AlTiN Single End 45.0° Chamfer Widia Series Mills

Part Number: HANTR4S4R10004 0.375 x 0.375 x 0.500 x 2.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237337
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1952552 End Mill Carbide AlTiN 45.0° Chamfer Chamfer Flutes 4 Single End WIDIA Series Mills Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Fine Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 20
Center Cutting Center Cutting
Neck Length 0.5000 12.70MM
