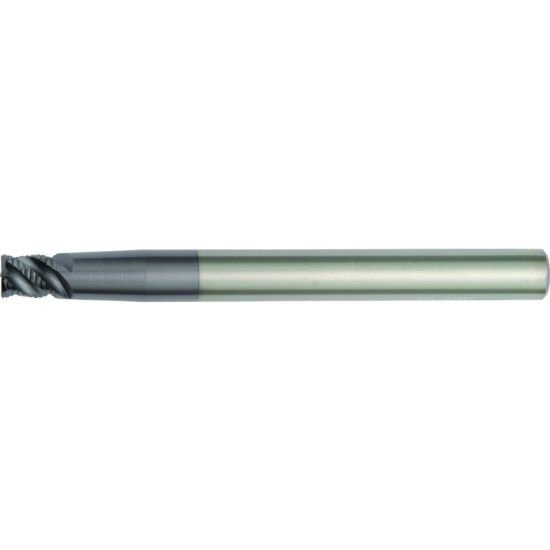

Picture of Hanita/Widia TM7S7R13006A Dia 1/2 SH 0.50 LOC 0.50 OAL5.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0400 1.02mm Vision Plus

Hanita/Widia TM7S7R13006A Dia 1/2 SH 0.50 LOC 0.50 OAL5.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0400 1.02mm Vision Plus

Part Number: HANTM7S7R13006A 0.500 x 0.500 x 0.500 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237945
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3116105 High Helix End Mill Carbide AlTiN Corner Radius 0.0400 1.02MM Standard Flute Flutes 4 Single End Vision Plus Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0400 1.02MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
Neck Length 1.9500 49.53MM
