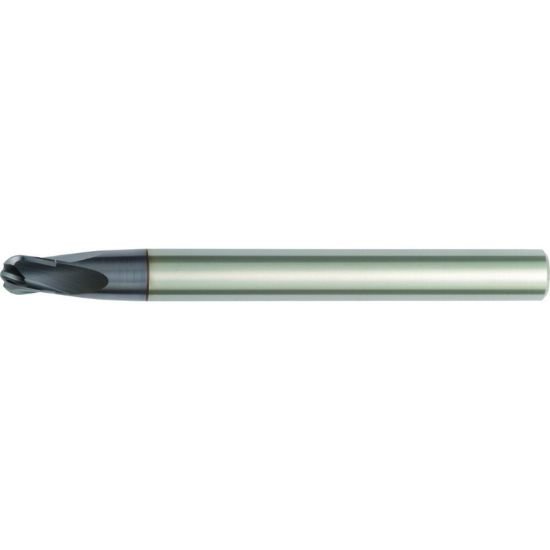

Picture of Hanita/Widia TM7S5F10005 Dia 3/8 SH 0.3750 LOC 0.3750 OAL5.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall Vision Plus

Hanita/Widia TM7S5F10005 Dia 3/8 SH 0.3750 LOC 0.3750 OAL5.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall Vision Plus

Part Number: HANTM7S5F10005 0.375 x 0.375 x 0.375 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237897
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3058738 High Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 4 Single End Vision Plus Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 15
Center Cutting Center Cutting
Neck Length 0.3750 9.53MM
