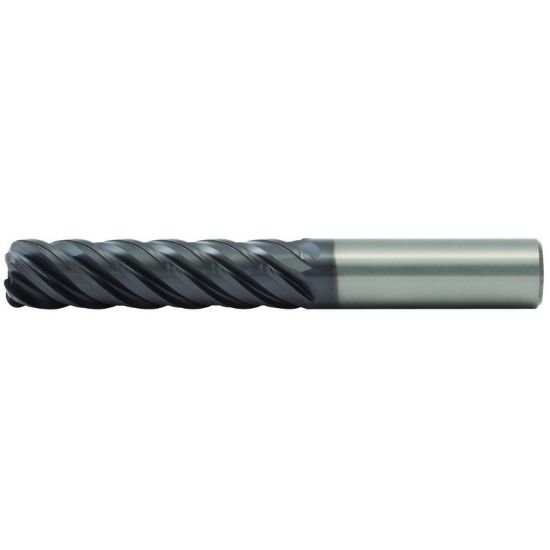

Picture of Hanita/Widia TM5W1S13005A Dia 1/2 SH 0.50 LOC 2.00 OAL5.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0150 0.38mm VariMill II

Hanita/Widia TM5W1S13005A Dia 1/2 SH 0.50 LOC 2.00 OAL5.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0150 0.38mm VariMill II

Part Number: HANTM5W1S13005A 0.500 x 0.500 x 2.000 x 5.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1238388
Vendor: Sussex Tool and Supply
$181.47

Description

HANITA/WIDIA 5095420 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0150 0.38MM Standard Flute Flutes 5 Single End VariMill II Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 2.0000 50.80MM
Neck Length 2.0000 50.80MM
Geometry & Angles
Corner Radius 0.0150 0.38MM
Helix Angle Variable
Performance & Capacity
Cut Rating High Temp, Titanium
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
