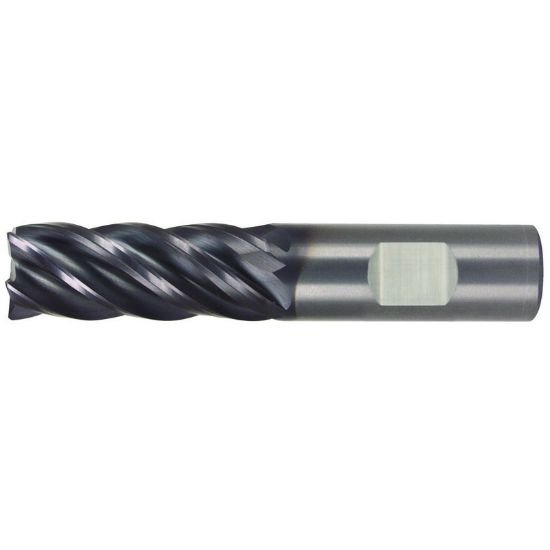

Picture of Hanita/Widia TM5V0S07002C Dia 1/4 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm VariMill II

Hanita/Widia TM5V0S07002C Dia 1/4 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm VariMill II

Part Number: HANTM5V0S07002C 0.250 x 0.250 x 0.750 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238234
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3660162 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0600 1.52MM Standard Flute Flutes 5 Single End VariMill II Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 5
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Non Center Cutting
Neck Length 0.7500 19.05MM
