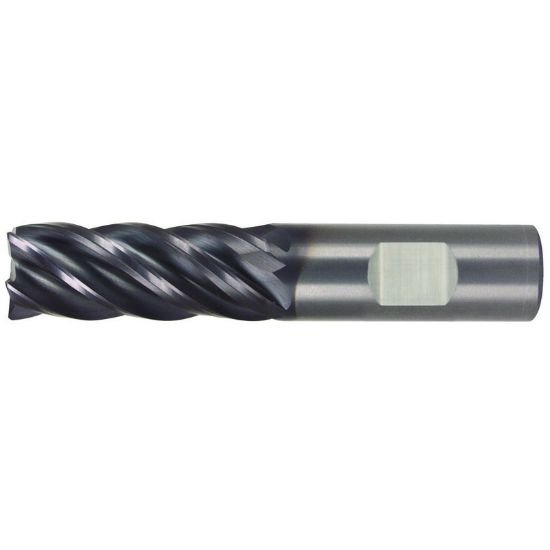

Picture of Hanita/Widia TM5V0S05000B Dia 3/16 SH 0.1875 LOC 0.6250 OAL2.2500 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm VariMill II

Hanita/Widia TM5V0S05000B Dia 3/16 SH 0.1875 LOC 0.6250 OAL2.2500 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm VariMill II

Part Number: HANTM5V0S05000B 0.188 x 0.188 x 0.625 x 2.250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238138
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3552615 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 5 Single End VariMill II Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.2500 57.15MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 5
Tool Dia 0.1875 4.76MM - 3/16
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Non Center Cutting
Neck Length 0.6250 15.88MM
