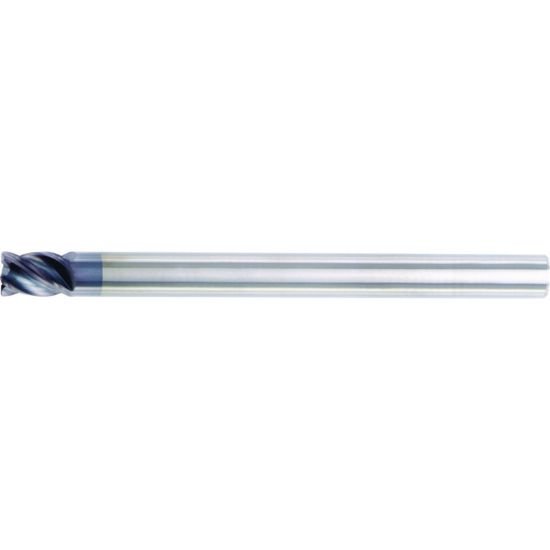

Picture of Hanita/Widia TM4VPT19017 Dia 3/4 SH 0.7500 LOC 1.00 OAL6.00 End Mill Carbide AlTiN Single End 45.0° Chamfer VariMill

Hanita/Widia TM4VPT19017 Dia 3/4 SH 0.7500 LOC 1.00 OAL6.00 End Mill Carbide AlTiN Single End 45.0° Chamfer VariMill

Part Number: HANTM4VPT19017 0.750 x 0.750 x 1.000 x 6.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237561
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 2831865 End Mill Carbide AlTiN 45.0° Chamfer Chamfer Flutes 4 Single End VariMill Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating High Temp, Titanium
Coating ALTIN
Mach Side Connection Size 0.7500 19.05MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Fine Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
