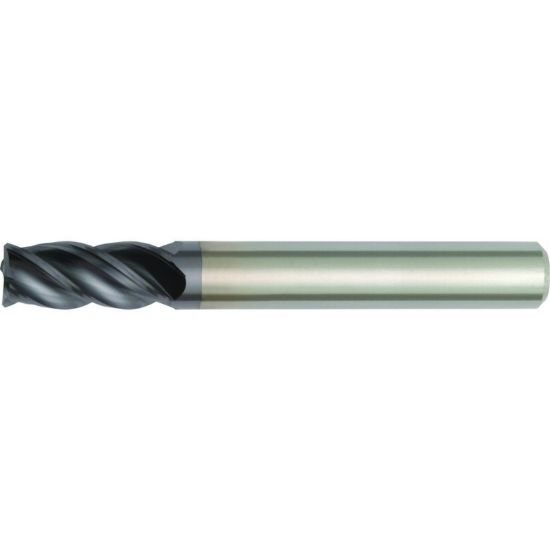

Picture of Hanita/Widia TF4V4513005S Dia 1/2 SH 2.00 LOC 0.6250 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp VariMill I

Hanita/Widia TF4V4513005S Dia 1/2 SH 2.00 LOC 0.6250 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp VariMill I

Part Number: HANTF4V4513005S 0.500 x 0.500 x 0.625 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237836
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 2870193 High Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 4 Single End VariMill I Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Mach Side Connection Size 0.5000 12.70MM - 1/2
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
