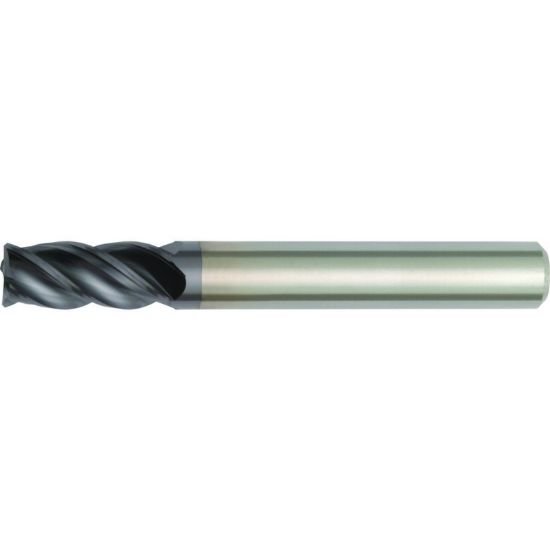

Picture of Hanita/Widia TF4V4508003 Dia 5/16 SH 0.3125 LOC 0.50 OAL2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End 45.0° Chamfer VariMill I

Hanita/Widia TF4V4508003 Dia 5/16 SH 0.3125 LOC 0.50 OAL2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End 45.0° Chamfer VariMill I

Part Number: HANTF4V4508003 0.313 x 0.313 x 0.500 x 2.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237840
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 2870198 High Helix End Mill Carbide Uncoated 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End VariMill I Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
