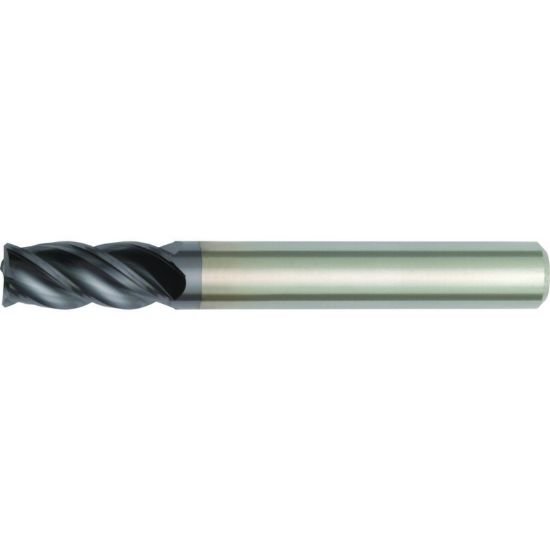

Picture of Hanita/Widia TF4V4505000 Dia 3/16 SH 0.1875 LOC 0.3125 OAL1.50 End Mill Standard Flute High Helix Carbide Uncoated Single End 45.0° Chamfer VariMill I

Hanita/Widia TF4V4505000 Dia 3/16 SH 0.1875 LOC 0.3125 OAL1.50 End Mill Standard Flute High Helix Carbide Uncoated Single End 45.0° Chamfer VariMill I

Part Number: HANTF4V4505000 0.188 x 0.188 x 0.313 x 1.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237843
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 2870201 High Helix End Mill Carbide Uncoated 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End VariMill I Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Mach Side Connection Size 0.1875 4.76MM
Overall Length 1.5000 38.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1875 4.76MM - 3/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3125 7.94MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
