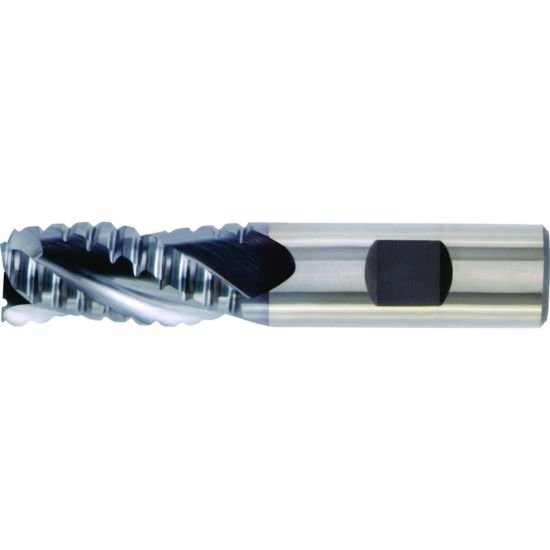

Picture of Hanita/Widia TC6A3R32009 Dia 1-1/4 SH 2.00 LOC 3.00 OAL5.50 End Mill Powder Metal TiCN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia TC6A3R32009 Dia 1-1/4 SH 2.00 LOC 3.00 OAL5.50 End Mill Powder Metal TiCN Single End 45.0° Chamfer Widia Series Mills

Part Number: HANTC6A3R32009 1.250 x 2.000 x 3.000 x 5.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237673
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 2840073 End Mill Powder Metal TiCN 45.0° Chamfer Chamfer Flutes 3 Single End WIDIA Series Mills Powder Metal Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Overall Length 5.5000 139.70MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 3.0000 76.20MM
End Of Tool Shape Corner Chamfer
Cutter Style Powder Metal Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 3.0000 76.20MM
