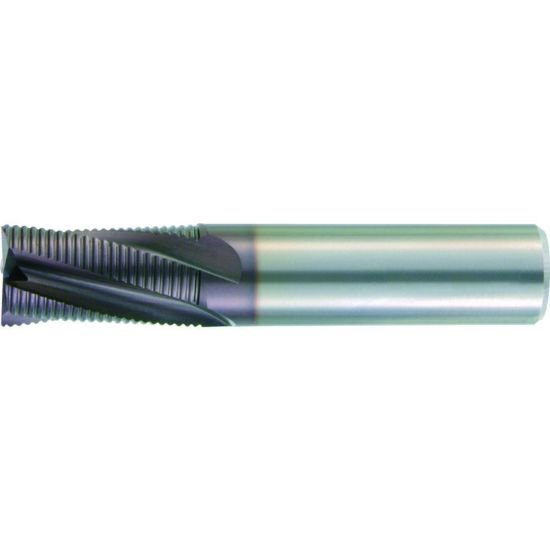

Picture of Hanita/Widia TC4S0R10004 Dia 3/8 SH 2.00 LOC 0.8750 OAL2.50 End Mill Carbide TiCN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia TC4S0R10004 Dia 3/8 SH 2.00 LOC 0.8750 OAL2.50 End Mill Carbide TiCN Single End 45.0° Chamfer Widia Series Mills

Part Number: HANTC4S0R10004 0.375 x 0.375 x 0.875 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237683
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 2841546 End Mill Carbide TiCN 45.0° Chamfer Chamfer Flutes 4 Single End WIDIA Series Mills Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.3750 9.53MM - 3/8
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 20
Center Cutting Center Cutting
Neck Length 0.8750 22.23MM
