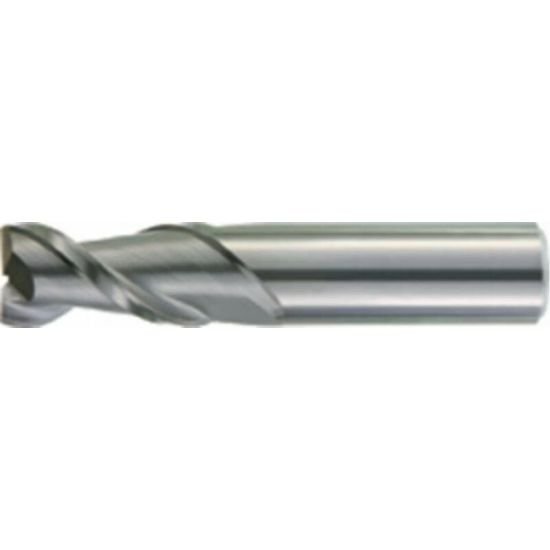

Picture of Hanita/Widia TC4K0203071 Dia 1/8 SH 0.1250 LOC 0.50 OAL2.00 End Mill Standard Flute High Helix Carbide TiCN Single End Square Sharp ArCut

Hanita/Widia TC4K0203071 Dia 1/8 SH 0.1250 LOC 0.50 OAL2.00 End Mill Standard Flute High Helix Carbide TiCN Single End Square Sharp ArCut

Part Number: HANTC4K0203071 0.125 x 0.125 x 0.500 x 2.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237707
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 2842224 High Helix End Mill Carbide TiCN Square Sharp Standard Flute Flutes 2 Single End ArCut Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.1250 3.18MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.1250 3.18MM - 1/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
