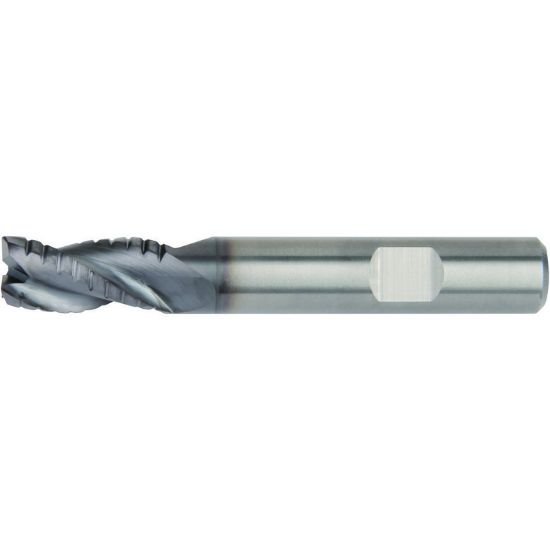

Picture of Hanita/Widia DQ1314014W Dia 14mm SH 0.5512 LOC 0.8661 OAL3.2677 End Mill Carbide AlTiN Single End Corner Radius0.0177 0.45mm Widia Series Mills

Hanita/Widia DQ1314014W Dia 14mm SH 0.5512 LOC 0.8661 OAL3.2677 End Mill Carbide AlTiN Single End Corner Radius0.0177 0.45mm Widia Series Mills

Part Number: HANDQ1314014W 0.551 x 0.551 x 0.866 x 3.268

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238495
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5560704 End Mill Carbide AlTiN Corner Radius 0.0177 0.45MM Flutes 3 Single End WIDIA Series Mills Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 3.2677 83.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 3
Tool Dia 0.5512 14.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8660 22.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Corner Radius 0.0177 0.45MM
Inch/Metric Metric
Helix Angle 35
Center Cutting Center Cutting
Neck Length 0.8661 22.00MM
