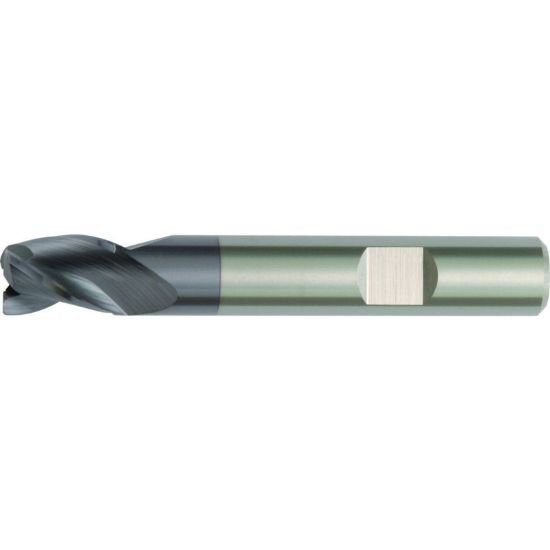

Picture of Hanita/Widia DC0303002LW Dia 3mm SH 0.2362 LOC 0.1575 OAL1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0100 0.25mm Widia Series Mills

Hanita/Widia DC0303002LW Dia 3mm SH 0.2362 LOC 0.1575 OAL1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0100 0.25mm Widia Series Mills

Part Number: HANDC0303002LW 0.118 x 0.236 x 0.158 x 1.969

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237226
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1661856 High Helix End Mill Carbide Uncoated Corner Radius 0.0100 0.25MM Standard Flute Flutes 3 Single End WIDIA Series Mills Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.2362 6.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.1181 3.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.1575 4.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0100 0.25MM
Inch/Metric Metric
Helix Angle 35
Center Cutting Center Cutting
Neck Length 0.1575 4.00MM
