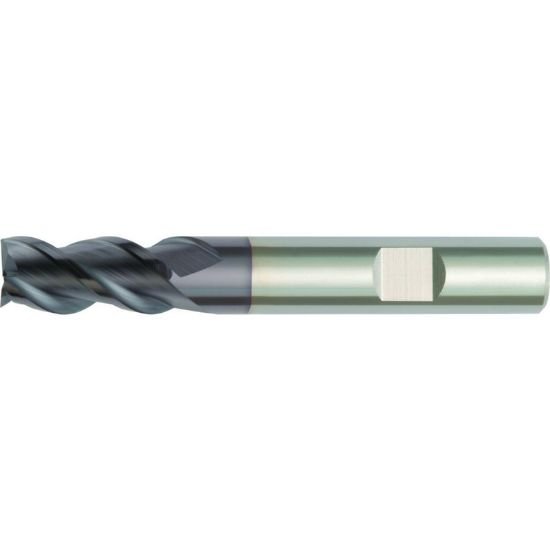

Picture of Hanita/Widia D513100S4W Dia 10mm SH 0.3937 LOC 0.7480 OAL2.8346 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Widia Series Mills

Hanita/Widia D513100S4W Dia 10mm SH 0.3937 LOC 0.7480 OAL2.8346 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Widia Series Mills

Part Number: HAND513100S4W 0.394 x 0.394 x 0.748 x 2.835

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237221
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1661710 High Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 3 Single End WIDIA Series Mills Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.8346 72.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 3
Tool Dia 0.3937 10.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7480 19.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
