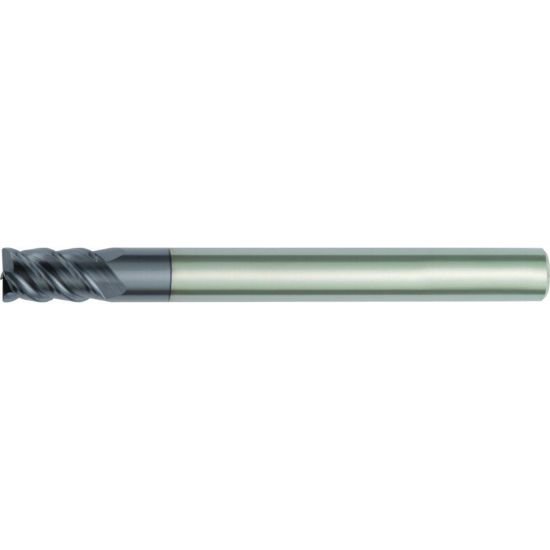

Picture of Hanita/Widia 758516016LT Dia 16mm SH 0.6299 LOC 0.9449 OAL4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0591 1.50mm Vision Plus

Hanita/Widia 758516016LT Dia 16mm SH 0.6299 LOC 0.9449 OAL4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0591 1.50mm Vision Plus

Part Number: HAN758516016LT 0.630 x 0.630 x 0.945 x 4.921

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237298
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1860628 High Helix End Mill Carbide Uncoated Corner Radius 0.0591 1.50MM Standard Flute Flutes 4 Single End Vision Plus Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Mach Side Connection Size 0.6299 16.00MM
Overall Length 4.9213 125.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Tool Dia 0.6299 16.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.9449 24.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0591 1.50MM
Inch/Metric Metric
Helix Angle 50
Center Cutting Center Cutting
Neck Length 0.9449 24.00MM
