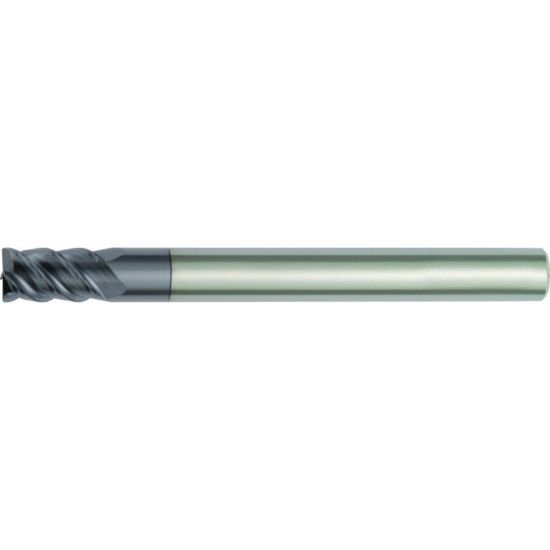

Picture of Hanita/Widia 758510014LT Dia 10mm SH 0.3937 LOC 0.5906 OAL3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0394 1.00mm Vision Plus

Hanita/Widia 758510014LT Dia 10mm SH 0.3937 LOC 0.5906 OAL3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0394 1.00mm Vision Plus

Part Number: HAN758510014LT 0.394 x 0.394 x 0.591 x 3.937

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237296
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1860624 High Helix End Mill Carbide Uncoated Corner Radius 0.0394 1.00MM Standard Flute Flutes 4 Single End Vision Plus Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Mach Side Connection Size 0.3937 10.00MM
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.5906 15.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0394 1.00MM
Inch/Metric Metric
Helix Angle 50
Center Cutting Center Cutting
Neck Length 0.5906 15.00MM
