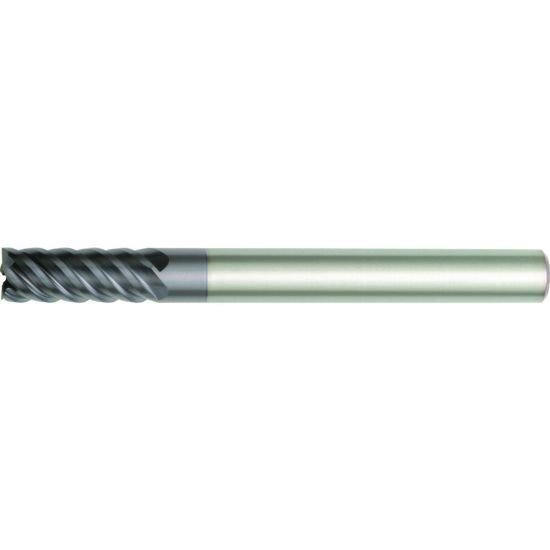

Picture of Hanita/Widia 752525008LT Dia 25mm SH 0.9843 LOC 3.4646 OAL5.9055 End Mill Standard Flute High Helix Carbide TiCN Single End Square Sharp Vision Plus

Hanita/Widia 752525008LT Dia 25mm SH 0.9843 LOC 3.4646 OAL5.9055 End Mill Standard Flute High Helix Carbide TiCN Single End Square Sharp Vision Plus

Part Number: HAN752525008LT 0.984 x 0.984 x 3.465 x 5.906

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237258
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1747931 High Helix End Mill Carbide TiCN Square Sharp Standard Flute Flutes 6 Single End Vision Plus Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.9843 25.00MM
Overall Length 5.9055 150.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 6
Tool Dia 0.9844 25.00MM - 63/64
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 3.4646 88.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 50
Center Cutting Center Cutting
